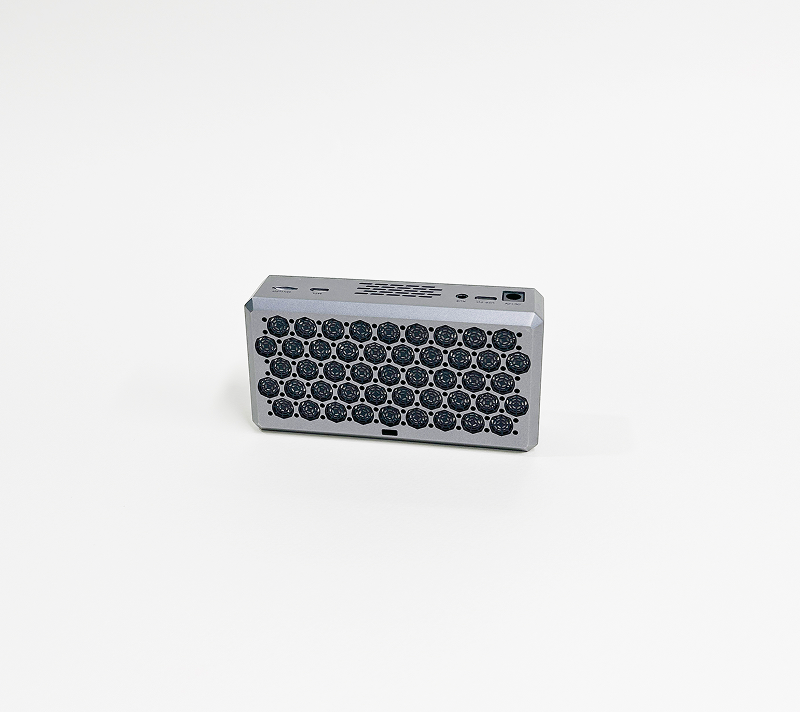

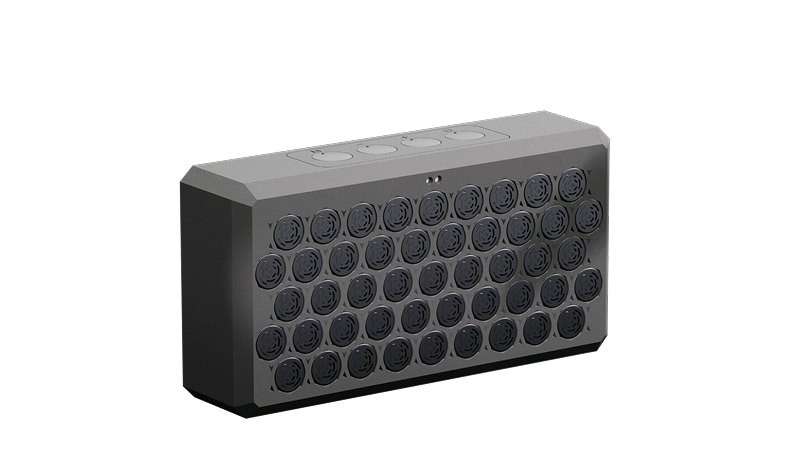

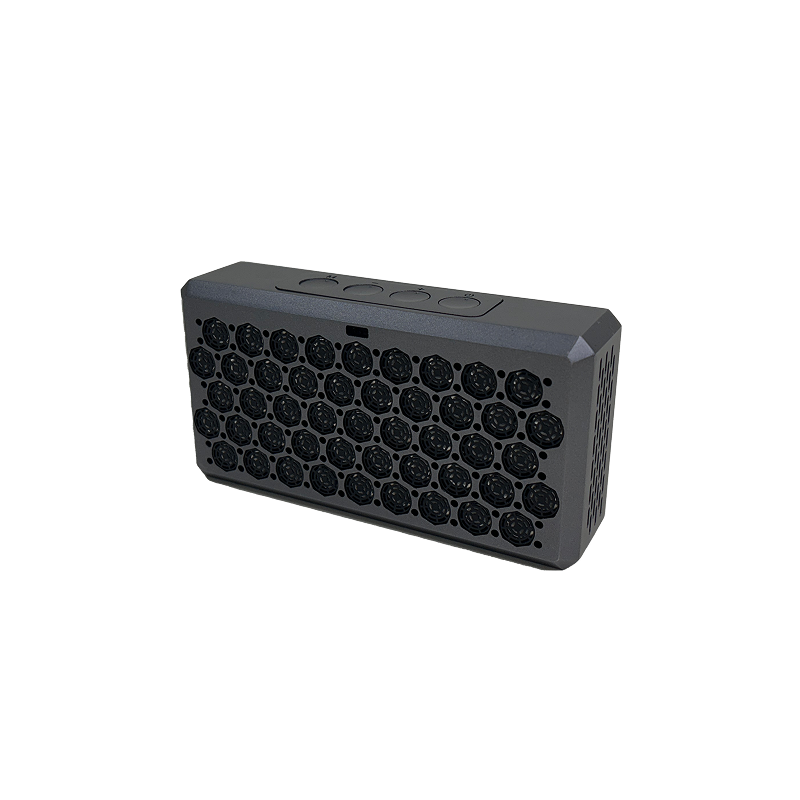

Brick Mini
Special features
Provides clear sound precisely where it’s needed, utilizing ultrasonic characteristics
Delivers world-class ultra-directional sound quality through core patented ultrasonic modulation algorithm technology
Built-in amplifier ensures easy installation and use
Supports a wide range of brackets with the standard VESA size (1/4-inch screw hole mount)
Available in modular form for integration with a wide range of products and spaces
Versatile audio input options including Bluetooth, Micro SD card, and AUX cable
Technology features
-
01. Equalizes sound directions based on directivity
General speakers create an echo, overlapping sounds
Directional speakers equalize the sound directions to minimize any overlapping sounds
-
02. Minimizes echoes by taking into account the mirroring effect of the sounds
Minimizes echoes when compared to general horns
-
03. Replies occur at a consistent frequency
Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region
-
04. Reaches the STI of 0.46 or above on average in tunnels
※ STI (Speech Transmission Index)
Specification
Specifications
| Maximum sound pressure | 94dB (Peak) |
|---|---|
| Directivity angle | ±10° |
| Power consumption | 15 watt |
| Modulation frequency | 40KHz |
| Operating temperature | -20 ℃ ~ +55 ℃ |
| Power Input | AC 100V~240V, 50~60Hz, 1.5A |
| Power Output | DC 12V / 2A |
| Audio input | 3.5∅ AUX, MicroSD, Bluetooth |
| Frequency range | ultrasonic waves 400Hz~10KHz |
| Dimensions | 128*66*30mm |
| Weight | 0.7kg |
