Dixxen

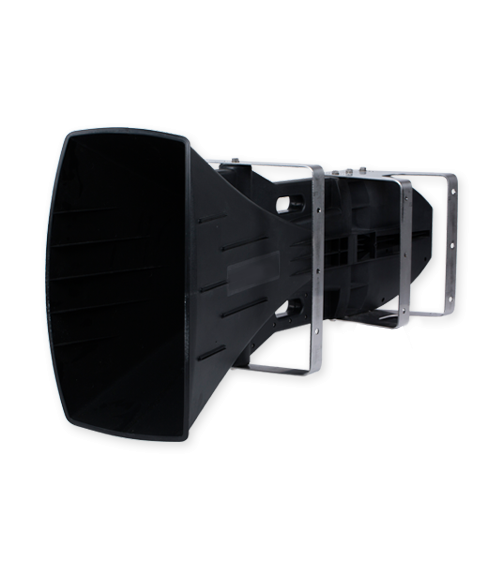

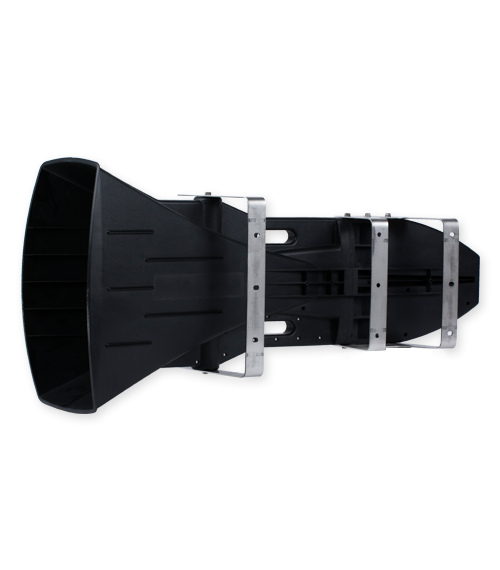

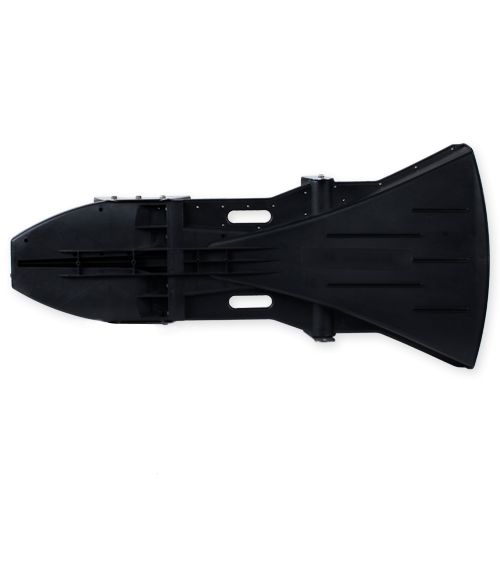

DIXXEN-H3

  • 메일
  • 유튜브

Special features

Minimizes echoes by utilizing the directionality technology
Uses a frequency with outstanding voice clarity
Has been optimized in accordance with the standard of emergency broadcasting facilities stipulated by the Ministry of Land, Infrastructure, and

Technology features

  • 01. Equalizes sound directions based on directivity

    General speakers create an echo, overlapping sounds

    Directional speakers equalize the sound directions to minimize any overlapping sounds

  • 02. Minimizes echoes by taking into account the mirroring effect of the sounds

    Minimizes echoes when compared to general horns

  • 03. Replies occur at a consistent frequency

    Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region

  • 04. Reaches the STI of 0.46 or above on average in tunnels

    ※ STI (Speech Transmission Index)

Specification

Speaker DIXXEN-H3
Dimension(mm) / Weight 310 x 550 x 1,160 / 16kg(Brackets excluded)
Compression Driver 100W, 500Hz ~ 20kHz
AMP AC220V, 100W
dBA(Leq) 127 dBA
IP Grade IP55
Application The highest-quality model specially designed for tunnels

Application

Reference

Tunnel safety broadcasts

Provides automatic and clear voice broadcasts related to safety for the first time in Korea to prevent any tunnel accidents from occurring, which have increasingly become one of the key major issues recently

Security in industrial facilities

The integration of the multiple surveillance systems of the DIXXEN S4R allows the detection of trespassers or trespassing objects. It proactively operates to block trespassers according to the effective and robust response scenario in the case of dangerous situations.

Protection of marine plants

The integration of the multiple surveillance systems of the DIXXEN S4R allows the detection of trespassers or trespassing objects. It proactively operates to block trespassers according to the effective and robust response scenario in the case of dangerous situations.

Prevention of the collisions of aircraft with birds

The DIXXEN S2R intelligently detects the approach of birds through its radar to prevent any collisions with birds while at the same time minimizes the destruction of the ecosystem since it does no physical harm to them.

Disaster evacuation broadcasts

The DIXXEN S4R System integration ensures real-time monitoring and keeps voyages safe by transmitting warning/safety broadcasts by detecting any approaches through integrated radars.

Kuwait Oil Tanker Company

The DIXXEN S4R System integration ensures real-time monitoring and keeps voyages safe by transmitting warning/safety broadcasts by detecting any approaches through integrated radars.

Brunei Navy

The DIXXEN S4 delivers operational commands, disaster alarms, and evacuation broadcasts to remote and large areas.

Republic of Korea Navy

DIXXEN S2R ensures the real-time monitoring of the relevant fields and delivers emergency mobilization commands based on the estimate of the situation.
