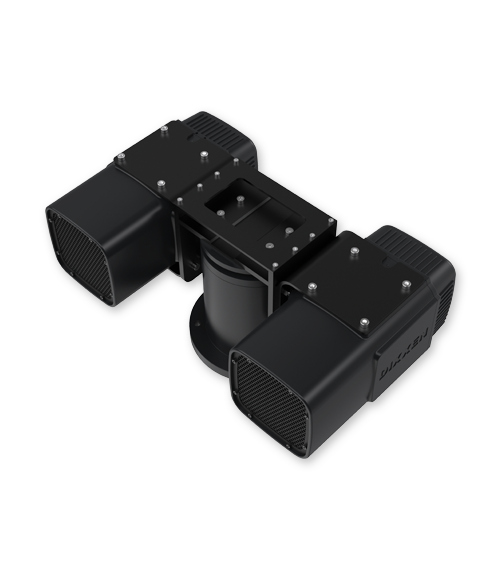

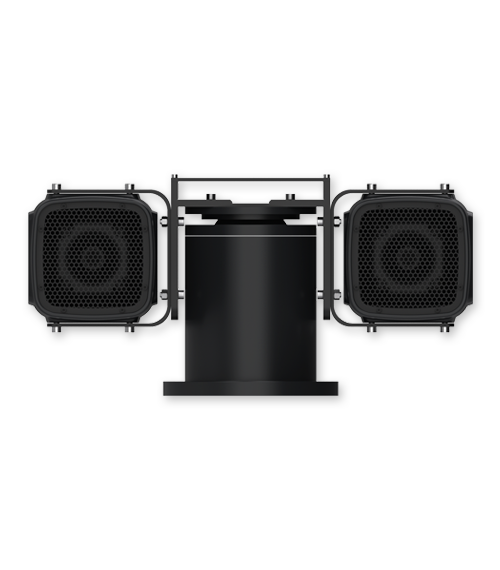

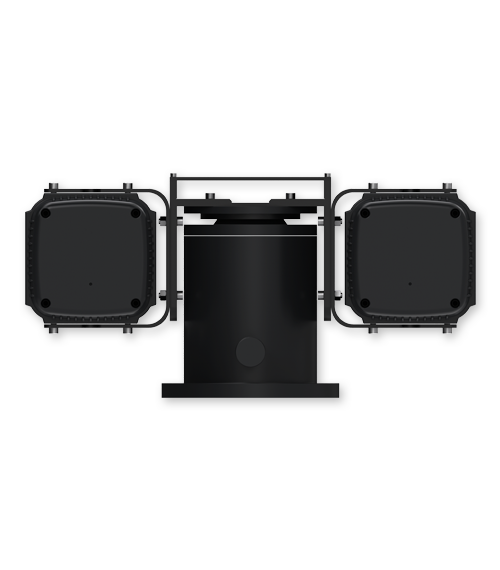

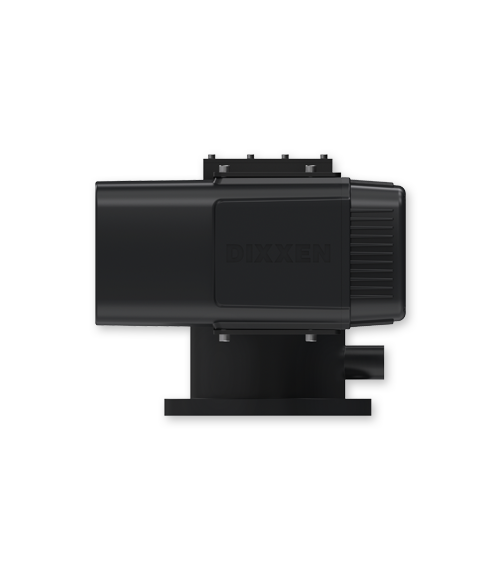

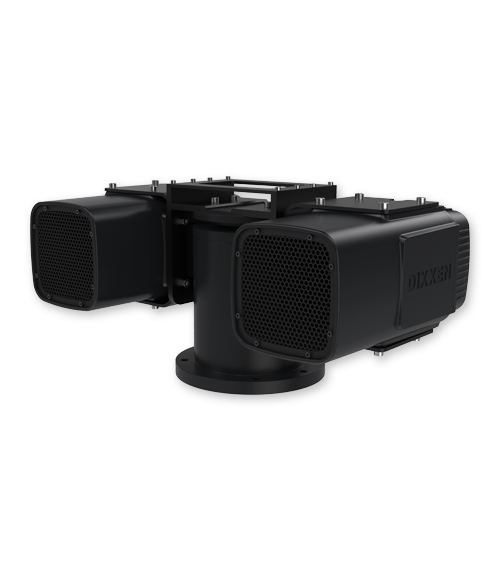

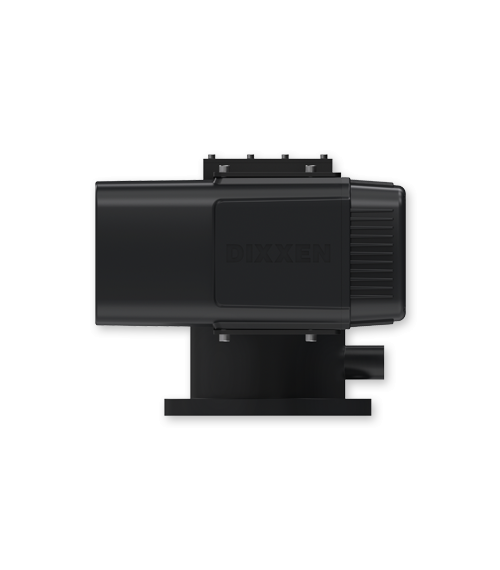

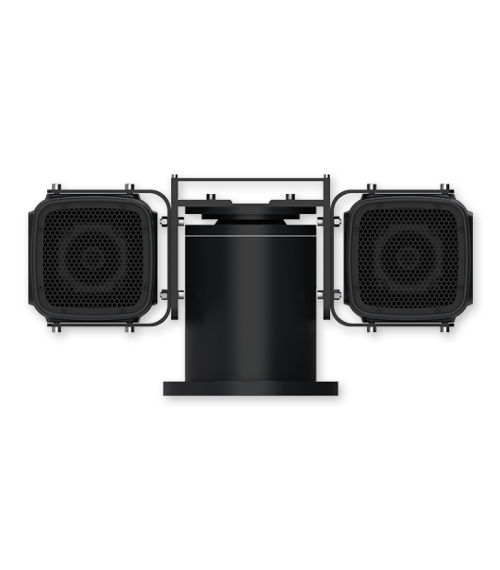

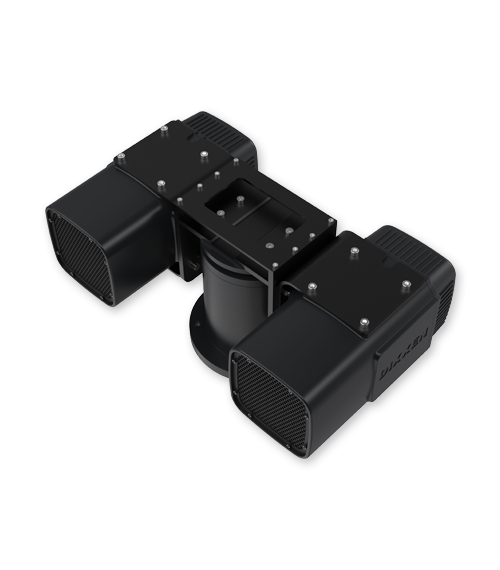

A3-DT

  • 메일
  • 다운로드

Special features

A maximum of 140dB sound pressure, located withina 1m front (Peak value)
Transmits broadcasts to a maximum 3kilometer long-distance target
Enables users to establish the speaker direction, monitor broadcasts and videos from automobiles and vessels insid

Technology features

  • 01. Equalizes sound directions based on directivity

    General speakers create an echo, overlapping sounds

    Directional speakers equalize the sound directions to minimize any overlapping sounds

  • 02. Minimizes echoes by taking into account the mirroring effect of the sounds

    Minimizes echoes when compared to general horns

  • 03. Replies occur at a consistent frequency

    Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region

  • 04. Reaches the STI of 0.46 or above on average in tunnels

    ※ STI (Speech Transmission Index)

Product Composition

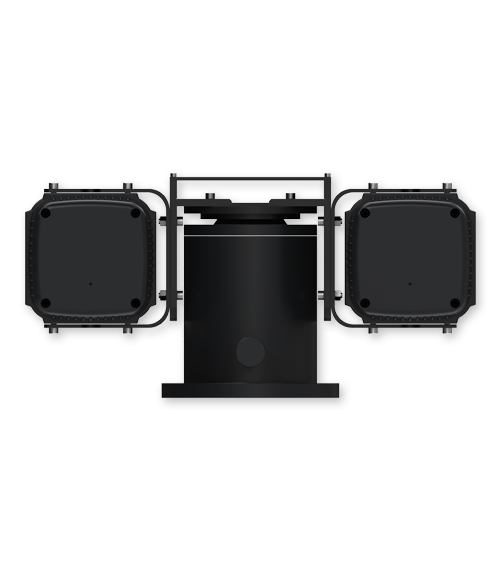

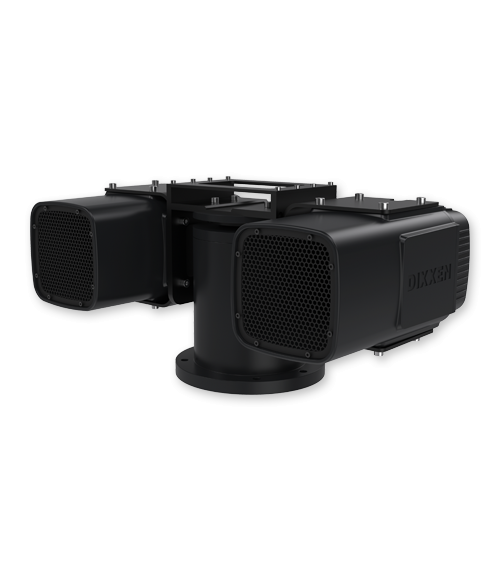

High-powered acoustic hailing speaker
Left/right rotating turntable
Controller (amplifier + turntable)

Specification

High-power acoustic hailing speakerCertificationTotal weight/size
Maximum sound pressure (Peak value) 140 dB @1m front (Peak)
Pointing angle ±15°
Maximum transmission distance ~1000m
Guaranteed distance for the voice transmission ~300m
Frequency range 120Hz ~ 5kHz

Application

Reference

no image

Tunnel safety broadcasts

Provides automatic and clear voice broadcasts related to safety for the first time in Korea to prevent any tunnel accidents from occurring, which have increasingly become one of the key major issues recently
no image

Security in industrial facilities

The integration of the multiple surveillance systems of the DIXXEN S4R allows the detection of trespassers or trespassing objects. It proactively operates to block trespassers according to the effective and robust response scenario in the case of dangerous situations.
no image

Protection of marine plants

The integration of the multiple surveillance systems of the DIXXEN S4R allows the detection of trespassers or trespassing objects. It proactively operates to block trespassers according to the effective and robust response scenario in the case of dangerous situations.
no image

Prevention of the collisions of aircraft with birds

The DIXXEN S2R intelligently detects the approach of birds through its radar to prevent any collisions with birds while at the same time minimizes the destruction of the ecosystem since it does no physical harm to them.
no image

Disaster evacuation broadcasts

The DIXXEN S4R System integration ensures real-time monitoring and keeps voyages safe by transmitting warning/safety broadcasts by detecting any approaches through integrated radars.
no image

Kuwait Oil Tanker Company

The DIXXEN S4R System integration ensures real-time monitoring and keeps voyages safe by transmitting warning/safety broadcasts by detecting any approaches through integrated radars.
no image

Brunei Navy

The DIXXEN S4 delivers operational commands, disaster alarms, and evacuation broadcasts to remote and large areas.
no image

Republic of Korea Navy

DIXXEN S2R ensures the real-time monitoring of the relevant fields and delivers emergency mobilization commands based on the estimate of the situation.
